Sub-Zero PRO 48 Repair: Two Sealed Systems, One Cabinet

A 48-inch PRO weighs roughly 1,000 pounds, and any repair that requires pulling it from its enclosure is a two-person operation by physics, not preference. We plan that access at booking: clearance to the cabinet, floor protection for stone or hardwood, and a confirmed path to the compressor bay behind the lower grille. Most diagnostic work and many repairs happen in place — only sealed-system and condenser jobs need the full roll-out — but knowing in advance keeps a service window from stalling on logistics.

Platform identification belongs in that same prep. A 648PRO and a PRO4850 differ in parts, control interface, and service access, so we confirm the platform from the rating plate near the compressor compartment before dispatch. When a fault reads as electrical rather than mechanical — a blank panel after one of Northeast Florida's frequent outages — the post-outage panel procedure applies to the PRO interface just as it does to the built-ins.

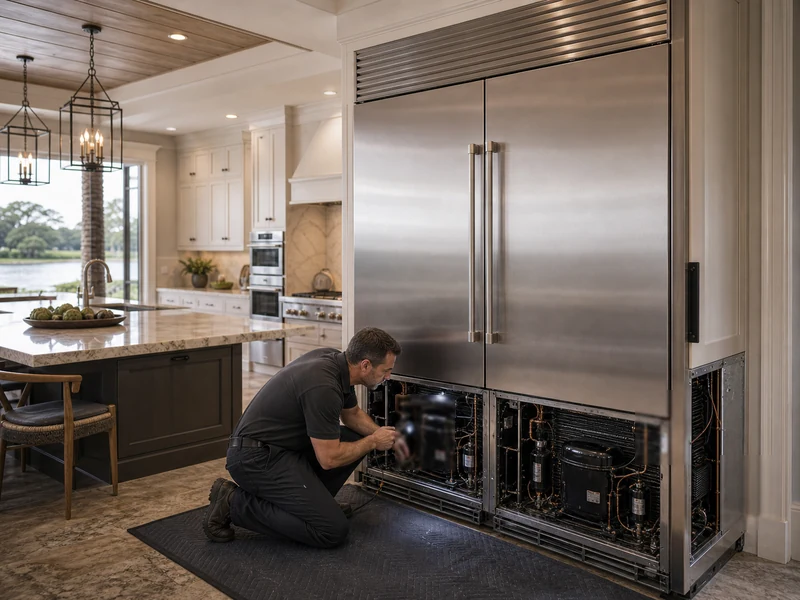

Because the PRO 48 carries two independent refrigeration systems, the first job is always to determine which one failed — that single decision halves the diagnostic field and tells us whether a $550 control fix or a $1,500 sealed-system repair is even in play.

1. Identify the affected compartment. Which side is warm decides which of the two machines is implicated; the other is cleared immediately.
2. Pull that side's fault history. The control logs records per system, so we read the affected circuit's history rather than a single shared log.
3. Meter the air path on that side. A warm refrigerator with a healthy freezer usually means that circuit's fan, thermistor, or evaporator — not its compressor.
4. Read that circuit's frost and pressures. Partial coil frost on the affected side is the tell that moves the diagnosis to its refrigerant charge.
5. Confirm the platform before ordering. 648PRO and PRO4850 parts do not interchange, so the rating plate sets the part list before anything is sourced.

My PRO 48 freezer is warm but the refrigerator is perfect — how is that possible?

That is the PRO 48 working exactly as designed. Unlike a single-compressor built-in, the PRO 48 runs two independent sealed systems — one for the refrigerator, one for the freezer — each with its own compressor and evaporator. A failure on the freezer system leaves the refrigerator untouched. It is one of the most common PRO 48 calls we run, and a dead freezer side is very repairable.

Why does PRO 48 diagnosis cost more than a standard built-in?

Because there are two machines to evaluate, not one, and because the unit weighs roughly 1,000 pounds. Each sealed system carries its own fault history, so a thorough PRO 48 diagnosis meters both sides. Any work that requires pulling the unit needs two technicians and planned access, which we arrange at booking. The upside is precision: we fix the side that failed without disturbing the side that did not.

Is the glass-door PRO 48 worse for condensation in Florida?

It runs warmer at the door, yes. The 648PROG and PRO4850G glass doors give up more heat than a solid panel, so in a humid Jacksonville kitchen the door can sweat and the refrigerator system runs longer. The fix is rarely the glass — it is a clean condenser, a flawless gasket, and correct door alignment. We verify all three before treating condensation as a refrigeration fault.

What is the difference between a 648PRO and a PRO4850?

They are two generations of the same 48-inch concept. The 648PRO and glass-door 648PROG ran from 2005 to 2019; the PRO4850 and PRO4850G replaced them in 2019 and continue today. Parts, control interface, and service access differ between the platforms, so we confirm which one you own from the rating plate before quoting — a 648PRO part will not serve a PRO4850.

Are PRO 48 parts expensive, and is the unit worth repairing?

OEM PRO parts cost more than built-in equivalents, but the unit is a commercial-grade machine engineered to run for decades, and at its replacement cost repair almost always wins. We quote against the specific failed system and the platform, put the figure in writing, and only steer toward replacement when both sealed systems are compromised at once — a rare verdict we never reach casually.

My PRO 48 ice maker quit but both compartments are cold — is that a sealed-system issue?

No, and the cold compartments rule the refrigeration out. A PRO 48 ice maker draws from the same hard JEA supply as any Sub-Zero, so a scaled inlet valve or a saturated filter stops the fill while both sealed systems keep running normally. We measure fill volume per cycle and check filter age first; the repair sits in the $250–$700 lane and never touches the dual refrigeration.

Can the freezer side of a PRO 48 keep running while only the refrigerator side is repaired?

Often, yes — that independence is the whole advantage of dual refrigeration. If the fault is isolated to the refrigerator circuit and the repair does not require pulling the cabinet, the freezer system can stay powered and frozen while we work the fridge side. We confirm at diagnosis whether the job is in-place or needs the full two-technician roll-out, and plan to minimize the time either compartment is down.

How much floor clearance does a PRO 48 service roll-out actually need?

Enough to walk a 1,000-pound cabinet straight out and reach the compressor bay behind the lower grille — typically the unit's own depth plus working room, with the run cleared of furniture and an island corner if one is close. We confirm the path at booking and bring floor protection for stone or hardwood. Most diagnostics and many repairs happen in place; only sealed-system and condenser work needs the full pull.
